NOTICE
- The following procedures are intended for Anxine equipment only. For other brands, refer to the original manufacturer’s instructions.
- Always disconnect the power supply before performing maintenance, cleaning, or mold changeover.
- Only trained and authorized persons are permitted to work on the equipment.
- Your equipment may vary from images or videos due to ongoing upgrades.
- If any part of this guide is unclear, contact Anxine for technical support before proceeding.
How to Operate the CF-15 Model for Powder Grinding?
This powder grinder CF-15 is designed for ultra-fine and precise grinding of dry materials. It combines air separation, strong shear, and pressure grinding to turn materials into fine powders. The operation is easy with buttons.

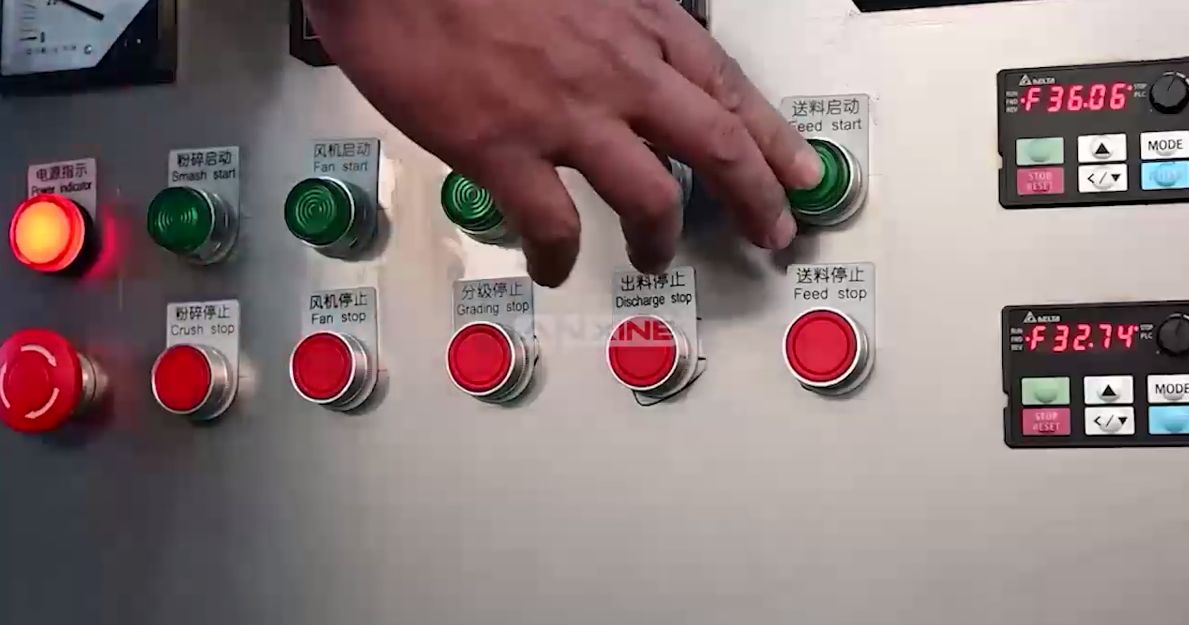

Step 1: Click the feed start button after feeding the materials.

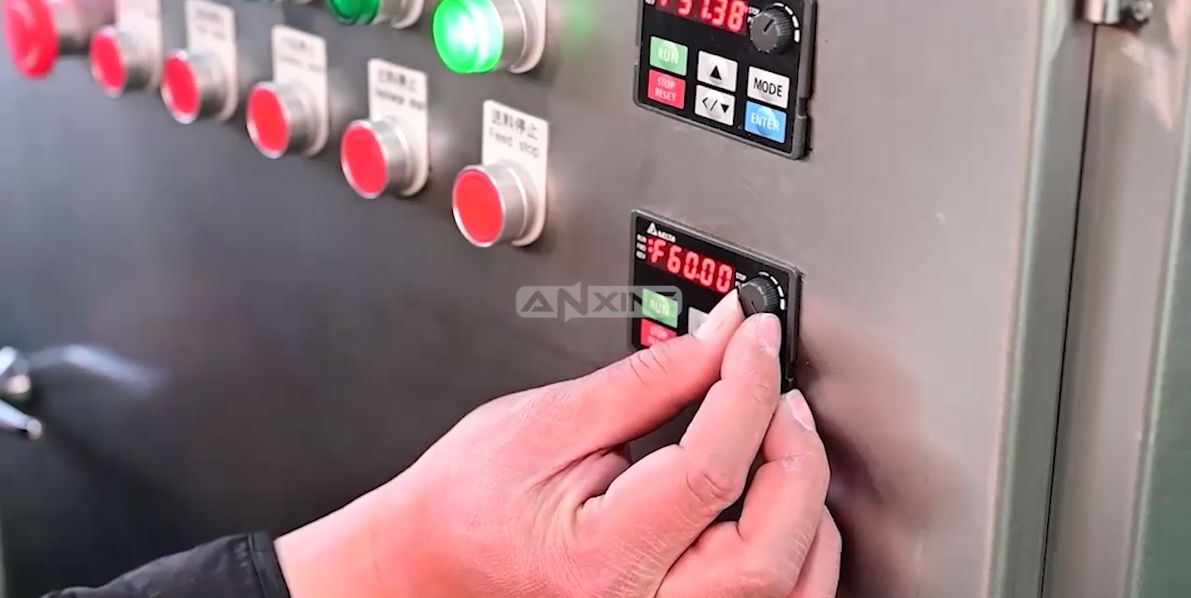

Step 2: Adjust the motor speed to meet your requirements for powder density.

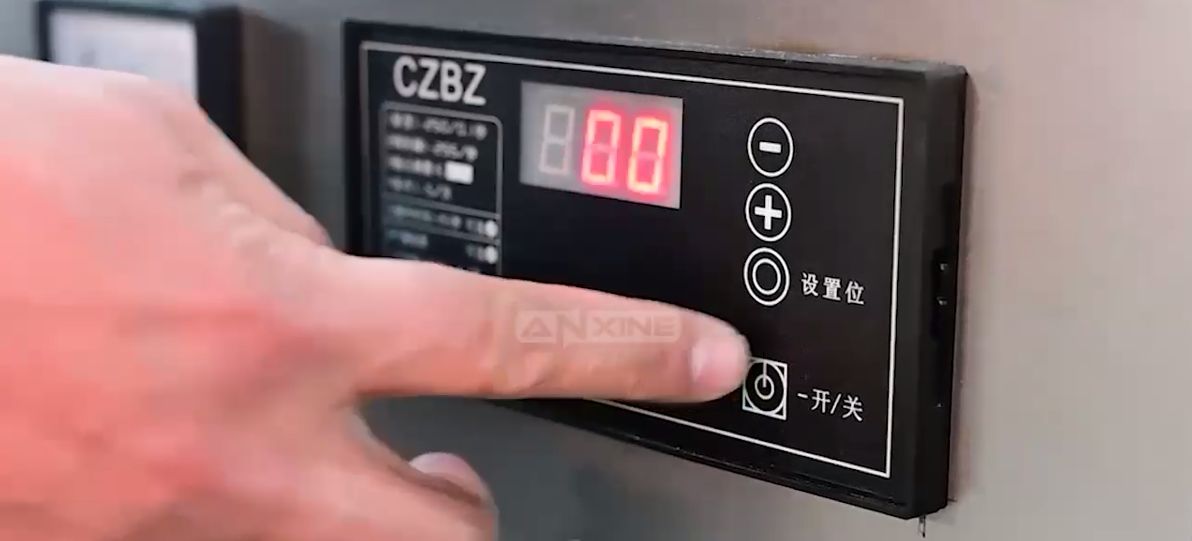

Step 3: Click the button for the machine on.

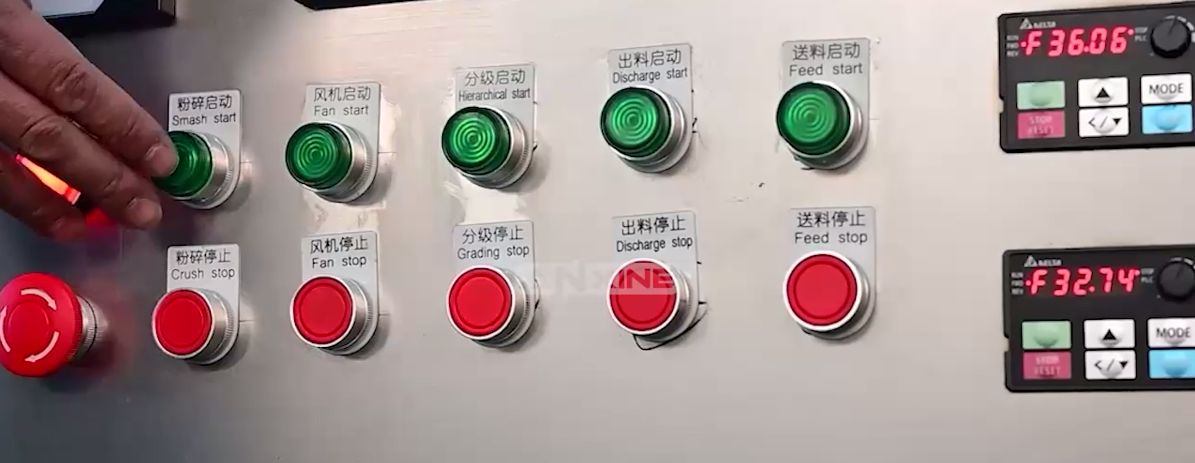

Step 4: Click the smash start button.

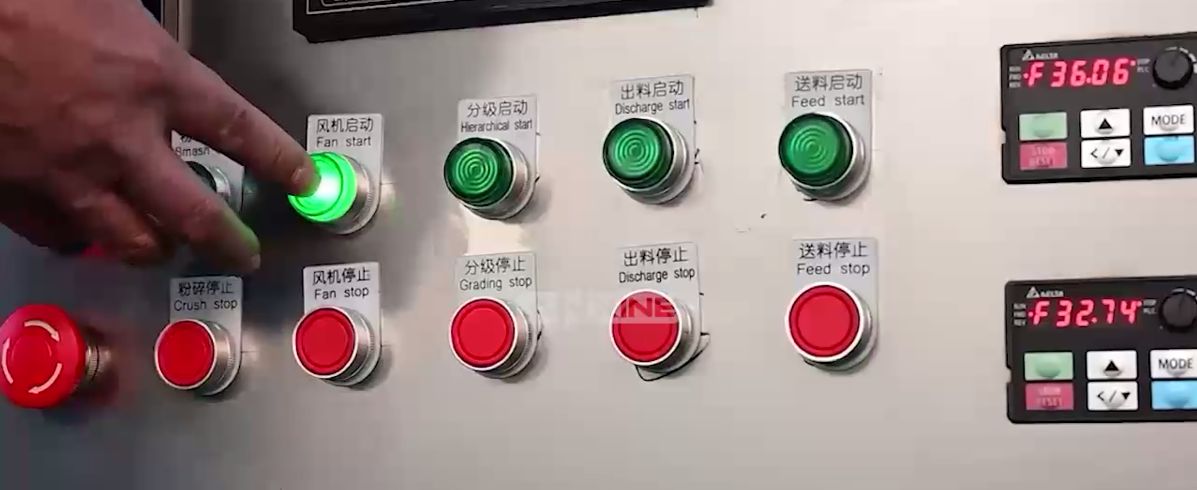

Step 5: Click the fan to start. You can find the fan works.

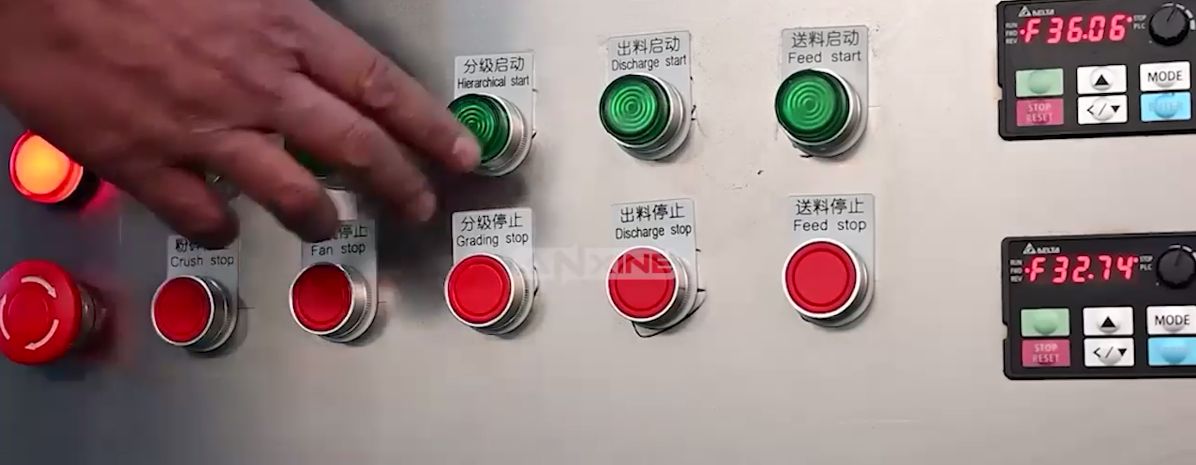

Step 6: Click the hierarchical start.

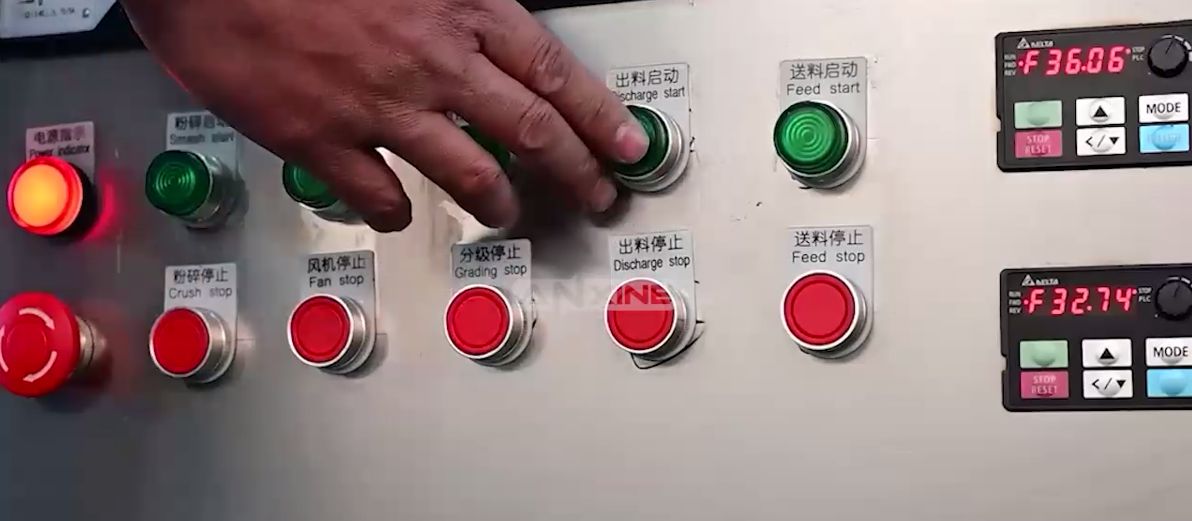

Step 7: Click the discharge start to get the powders.
See the workflow of the CF-15 model for powder grinding in action.

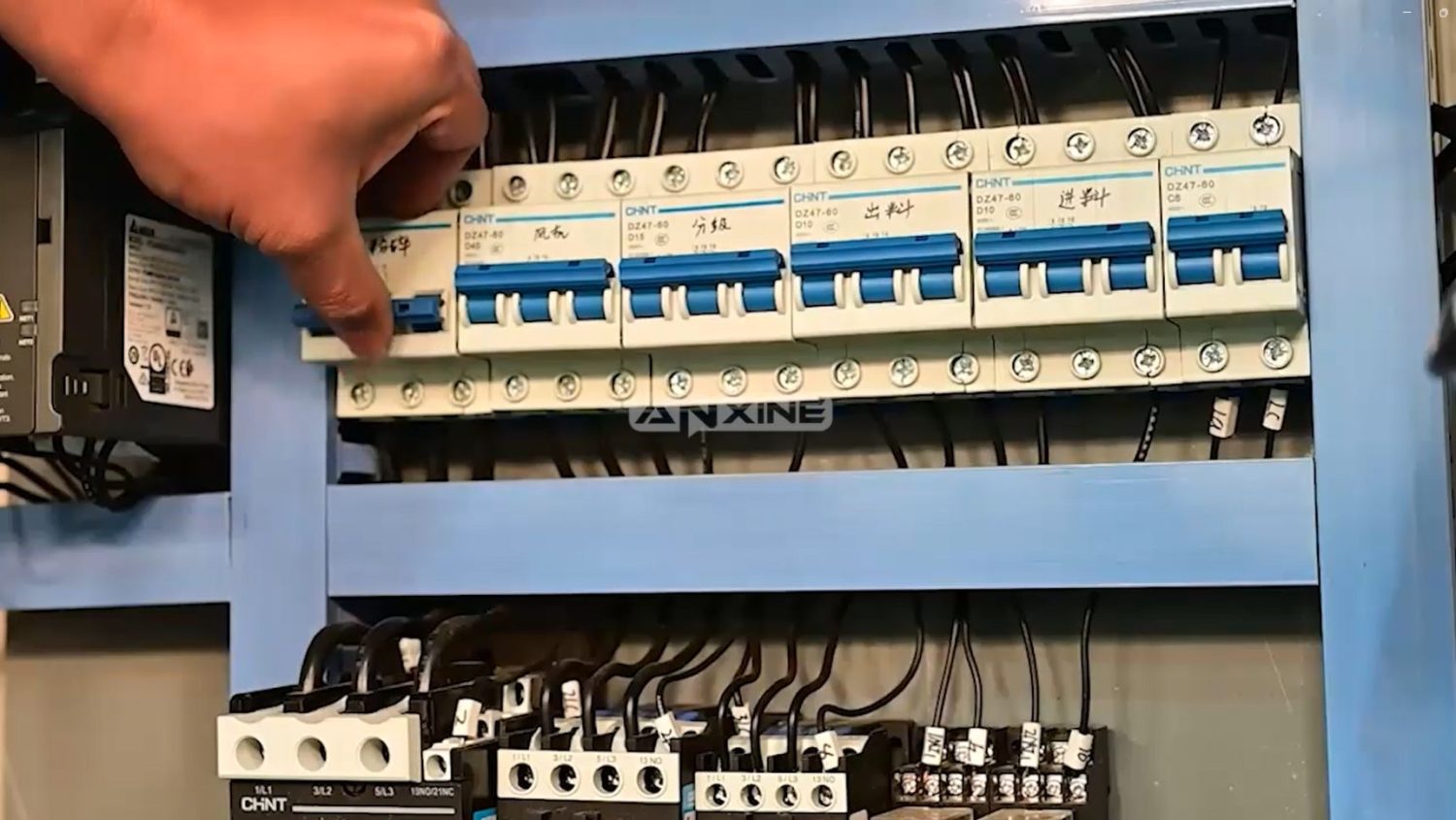

How to Check Wiring Connections

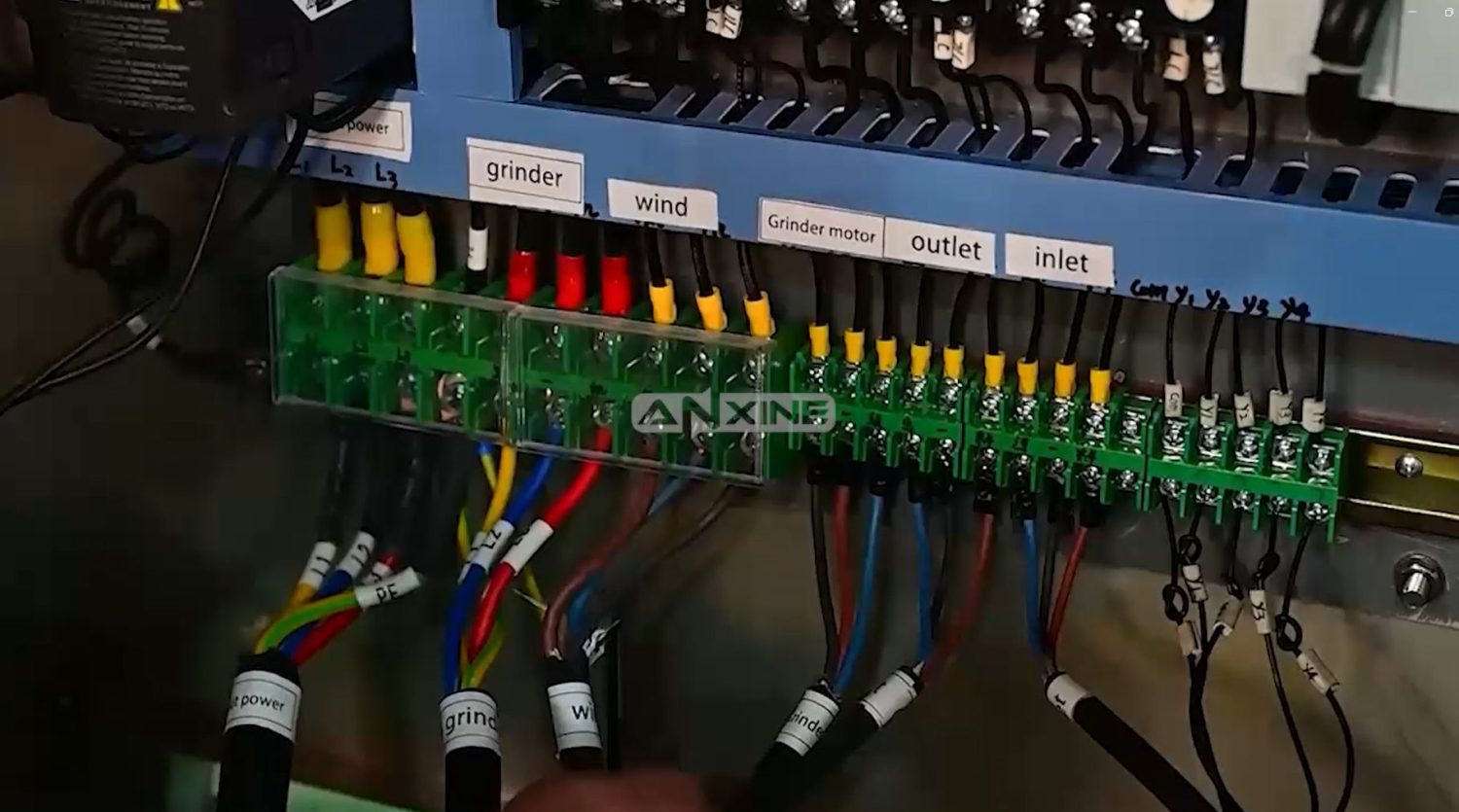

Step 1: Check all wiring connections based on the labels, color, and user manual, then tighten all connections.
Step 2: Before testing, turn on the circuit breaker.

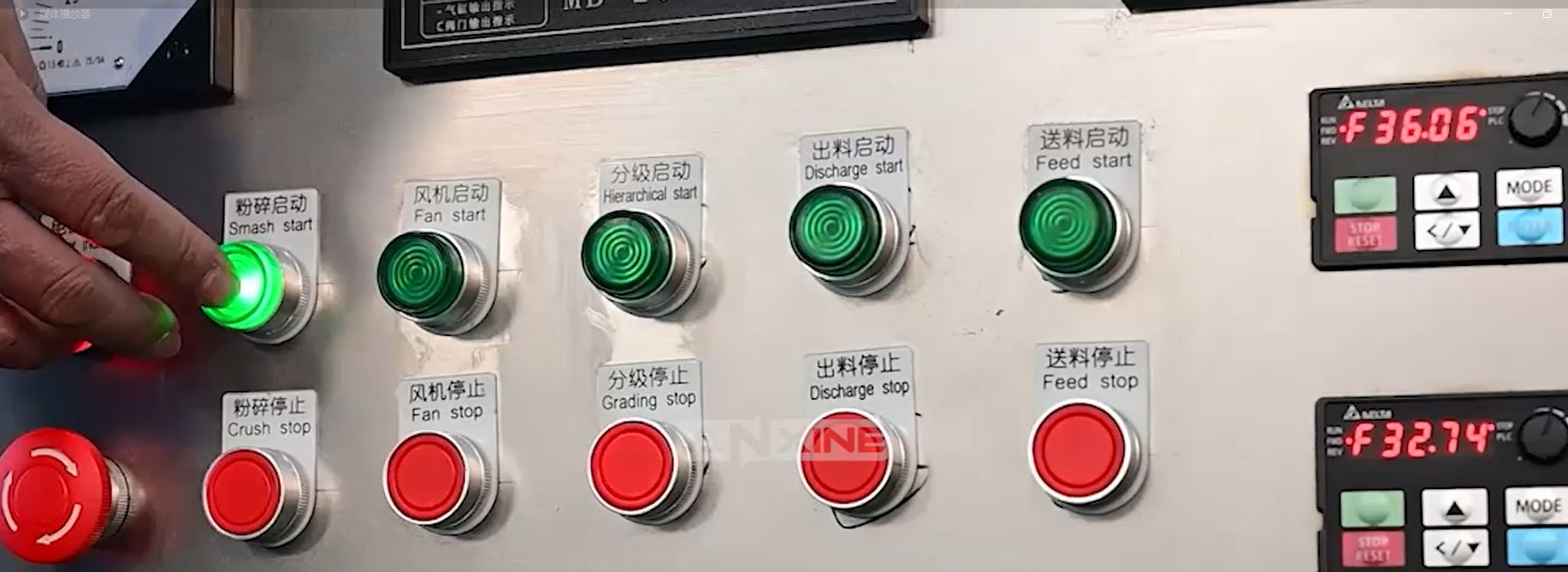

Step 3: Power on the machine first. Then start each function (Smash, Fan, Hierarchical, Discharge, and Feed) one by one to check whether each operates normally and in the correct direction.
Note: Turn off the previous function before starting the next.

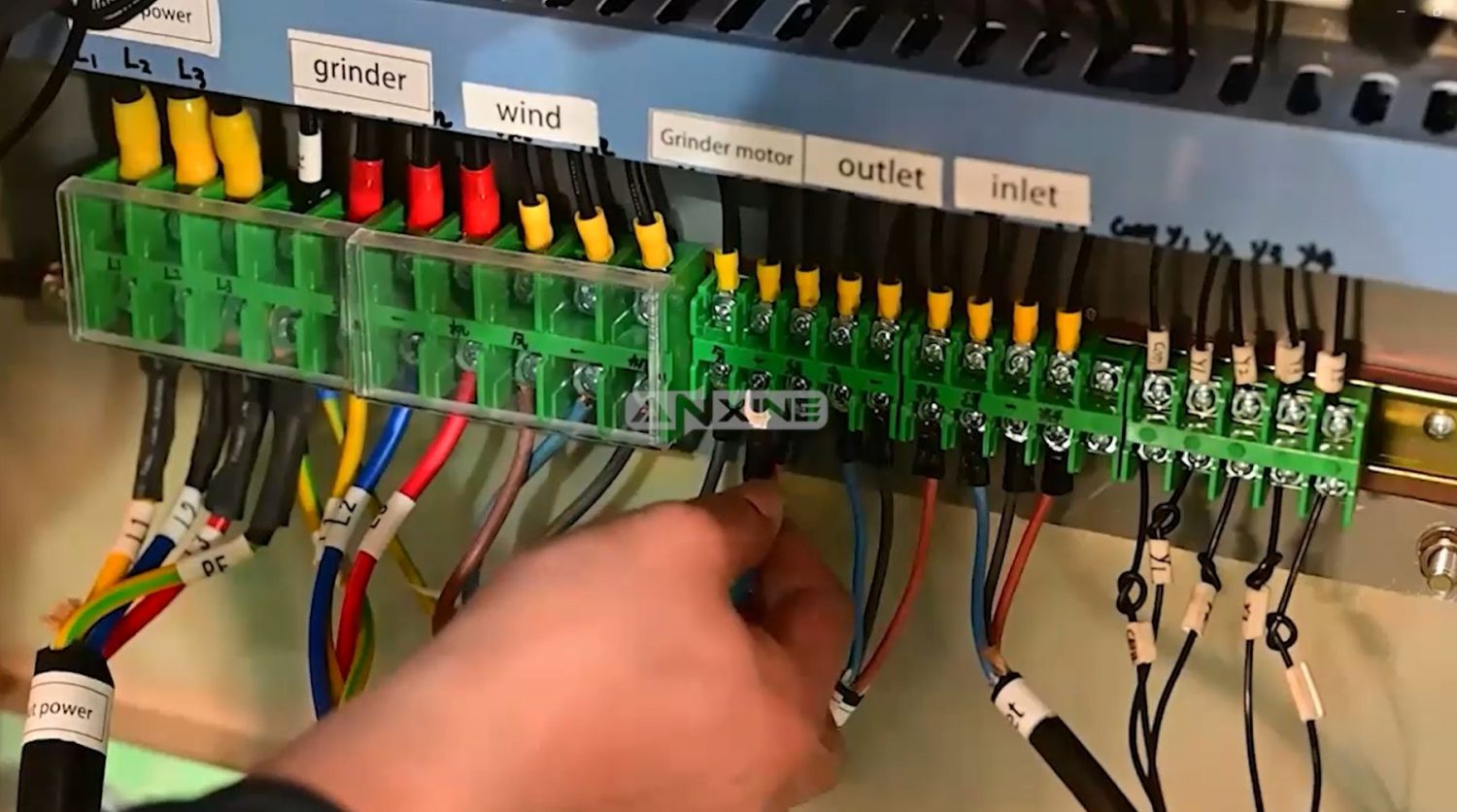

Step 4: During the operation of each function, if any abnormality occurs, such as unusual noise, failure to start, or incorrect rotation, turn off the function immediately. Then check and adjust the wiring connections again.
For clearer step-by-step procedures on how to check the wire connection, please click to watch the video below.
